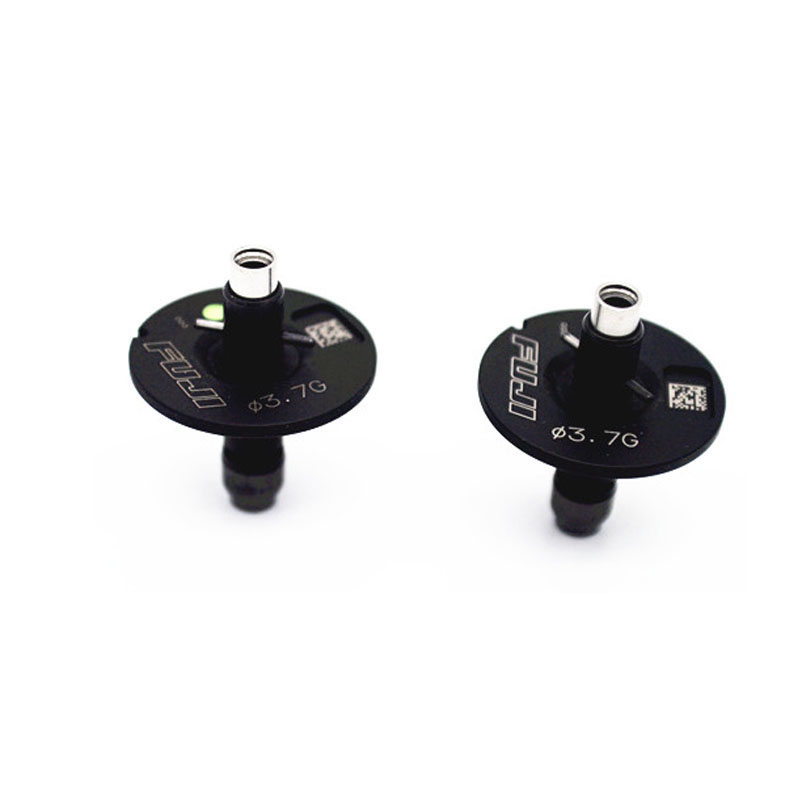

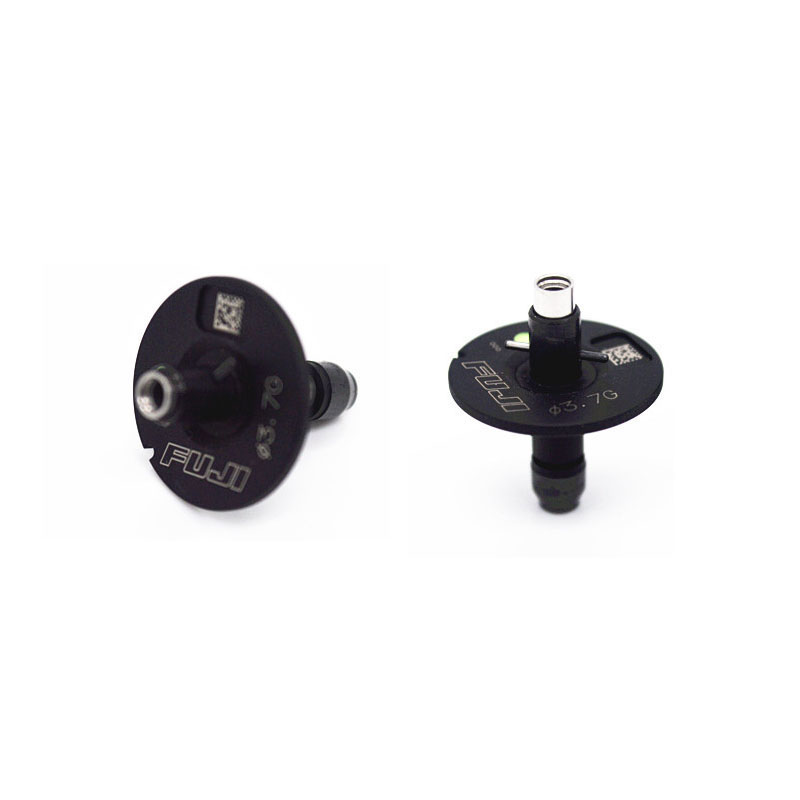

SMT FUJI NXT nozzle H04 Placing Head Nozzle Dia 3.7mm for FUJI NXT AA07A00 3.7mm

fuji AMPH8710 Nozzle assy fluorescent 0.7

on request

fuji AMPH8720 Nozzle assy fluorescent 1.0

fuji AMPH8730 Nozzle assy fluorescent 1.3

fuji AMPH8740 Nozzle assy fluorescent 1.8

fuji AMPH8750 Nozzle assy fluorescent 2.5 M

fuji AMPH8760 Nozzle assy fluorescent 2.5 L

fuji AMPH8770 Nozzle assy fluorescent 3.7 L

fuji AMPH8780 Nozzle assy fluorescent 5.0 L

fuji AWPH9510 Nozzle assy FL SS 0.7 R12-007

fuji AWPH9520 Nozzle assy FL S 1.0 R12-010

fuji AWPH9530 Nozzle assy FL M 1.3 R12-013

fuji AWPH9540 Nozzle assy FL M 1.3 M12-013 MELF

fuji AWPH9550 Nozzle assy FL M 1.8 R12-018

fuji AWPH9560 Nozzle assy FL L 2.5 R16-025

fuji AWPH9570 Nozzle assy FL L 3.7 R16-037

fuji AWPH9580 Nozzle assy FL L 2.5 R20-025

fuji AWPH9590 Nozzle assy FL 2.5 M20-025 MELF

fuji AWPH9600 Nozzle assy FL L 2.5 R16-025

fuji AWPH9610 Nozzle assy FL 5.0 S20-050 FLUOR.

fuji AWPH9660 Nozzle assy FL 5.0 S22-050 FLUOR.

fuji AWPH9670 Nozzle assy BLACK 5.0 B22-050

fuji AWPH9680 Nozzle assy FL 7.0 S22-070 FLUOR.

fuji AWPH9690 Nozzle assy black 7.0 B22-070

fuji AWPH9700 Nozzle assy FL SS 0.4 R12-004 (L=6.5)



fuji AA1AT10 Nozzle Head H08 ø0.3 NXT, R07-003-070

on request

on request

fuji AA05600 Nozzle Head H08 ø0.4 NXT, R07-004-070

fuji 2AGKNG021600 Nozzle Head H08 ø0.6 NXT, wide range S, R07-006WRS-070 -

fuji AA05700 Nozzle Head H08 ø0.7 NXT, R07-007-070 on request

fuji 2AGKNG009700 Nozzle Head H08 ø0.8 NXT, R07-008-070 -

fuji AA05800 Nozzle Head H08 ø1.0 NXT, R07-010-070 on request

fuji 2AGKNG021700 Nozzle Head H08 ø1.1 NXT, wide range M, R07-011WRM-070 -

fuji AA20A00 Nozzle Head H08 ø1.3 NXT, R07-013-070

on request

fuji AA06400 Nozzle Head H08 ø1.3/MELF NXT, R07-013M-070

fuji AA20B00 Nozzle Head H08 ø1.8 NXT, R07-018-070

fuji AA19G00 Nozzle Head H08 ø1.8/MELF NXT, R07-018M-070

fuji 2AGKNG021800 Nozzle Head H08 ø1.8 NXT, wide range L, R07-011WRL-070 -

fuji AA20C00 Nozzle Head H08 ø2.5 NXT, R07-025-070

on request

fuji AA0WT00 Nozzle Head H08 ø2.5G NXT with Rubber Pad, R07-025G-070

fuji AA06500 Nozzle Head H08 ø2.5/MELF NXT, R07-025M-070

fuji AA20D00 Nozzle Head H08 ø3.7 NXT, R07-037-070

fuji AA18C10 Nozzle Head H08 ø3.7G NXT with Rubber Pad, R07-037G-070

fuji AA20E00 Nozzle Head H08 ø5.0 NXT, R07-050-070

fuji AA06300 Nozzle Head H08 ø5.0G NXT with Rubber Pad, R07-050G-07



fuji nxt AA06W03 Nozzle Head H04 ø1.0 NXT, R19-010-155

on request

fuji nxt AA06X04 Nozzle Head H04 ø1.3 NXT, R19-013-155

fuji nxt AA22Y00 Nozzle Head H04 ø1.3ML/MELF NXT, R19-013M-155

fuji nxt AA06Y04 Nozzle Head H04 ø1.8 NXT, R19-018-155

fuji nxt AA22Z00 Nozzle Head H04 ø1.8ML/MELF NXT, R19-018M-155

fuji nxt AA06Z05 Nozzle Head H04 ø2.5 NXT, R19-025-155

fuji nxt AA07F02 Nozzle Head H04 ø2.5G NXT with Rubber Pad, R19-025G-155

fuji nxt AA2KE00 Nozzle Head H04 ø2.5ML/MELF NXT, R19-025M-155

fuji nxt AA07A05 Nozzle Head H04 ø3.7 NXT, R19-037-155

fuji nxt AA07G03 Nozzle Head H04 ø3.7G NXT with Rubber Pad, R19-037G-155

fuji nxt AA07B04 Nozzle Head H04 ø5.0 NXT, R19-050-155

fuji nxt AA07H03 Nozzle Head H04 ø5.0G NXT with Rubber Pad, R19-050G-155

fuji nxt AA07C04 Nozzle Head H04 ø7.0 NXT, R19-070-155

fuji nxt AA07K04 Nozzle Head H04 ø7.0G NXT with Rubber Pad, R19-070G-155

fuji nxt AA07D03 Nozzle Head H04 ø10.0 NXT, R19-x100x-155

fuji nxt AA07L04 Nozzle Head H04 ø10.0G NXT with Rubber Pad, R19-100G-155

fuji nxt AA07E03 Nozzle Head H04 ø15.0 NXT, R19-150-155

fuji nxt AA07M04 Nozzle Head H04 ø15.0G NXT with Rubber Pad, R19-150G-155

PS：The product picture is for reference only. The function and technical parameter setting of the product depends on the specific model.
